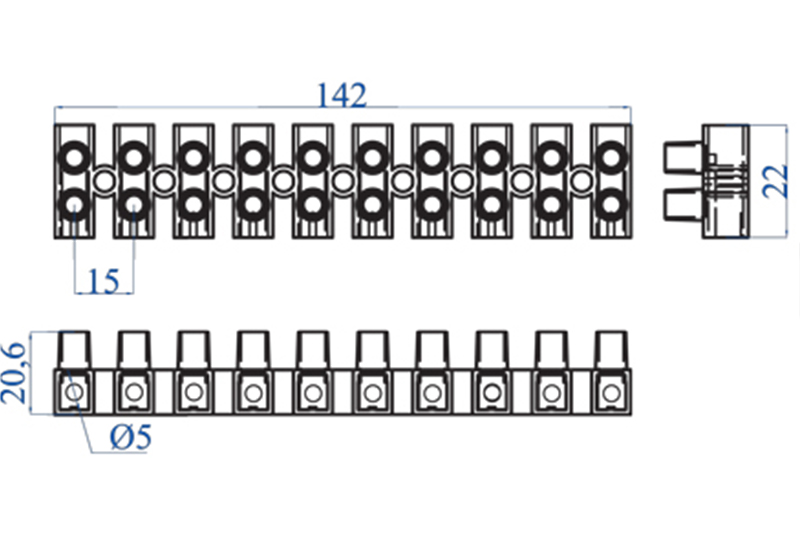

1-10 Way
with and without wire protector
16A 400W
310PB
310PA
310PN
Mouldings:
Polyamide 6
Polyamide 6 V-2 Natural
Polyamide66 V0 RED
Continuous working temp:
80°C
Short-time temperature:
160°C
Insents:
Brass,tinned
Screws:
M4X9mm
Steel, zinc plated,
Max: 2 Nm
Conductor Size:
With wire protector up to 10 mm
Nominal Cross - Section mm²:
10.0
Stripping length:
8-8,5 mm
Current Rating:
to EN 60598: 32 - 57 A
All the products we produce are produced with ISO 9001: 2015, quality management system, ISO 14001 2015 Environmental management system, ISO 45001 worker health safety and management system CE, VDE, SI: 1.1 ISRAEL, TUV Rheinland, REACH is certified with RoHS standards and is under AR-EL guarantee as it is tested with modern laboratory and control equipment equipped with high technology.
